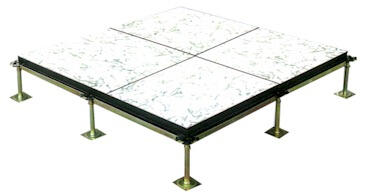

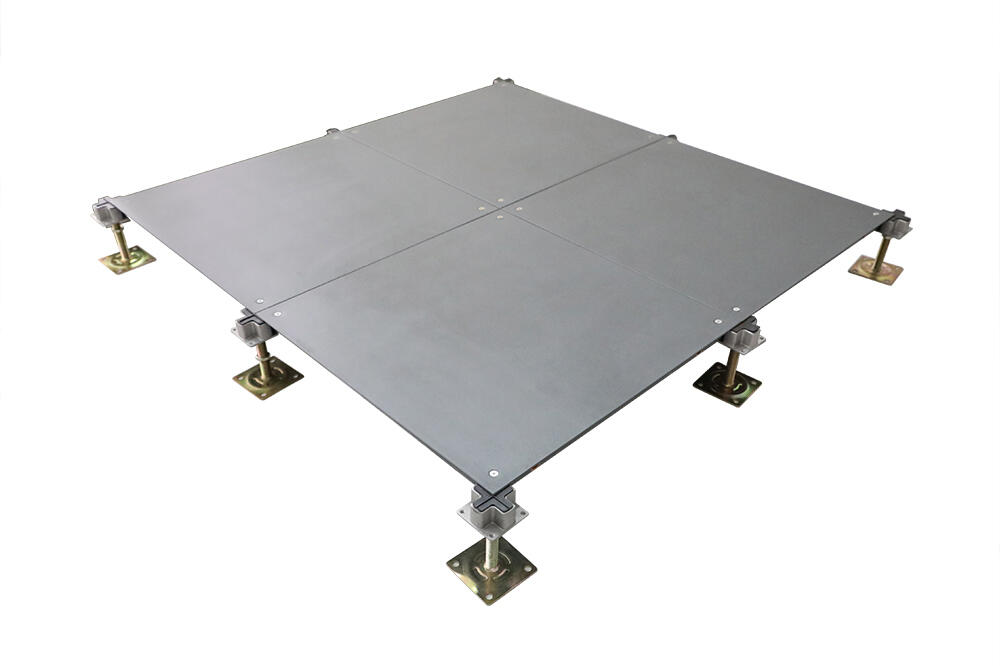

Raised Floor Type
Steel Panel Cementititous Infill Laminated Anti Static (HPL)

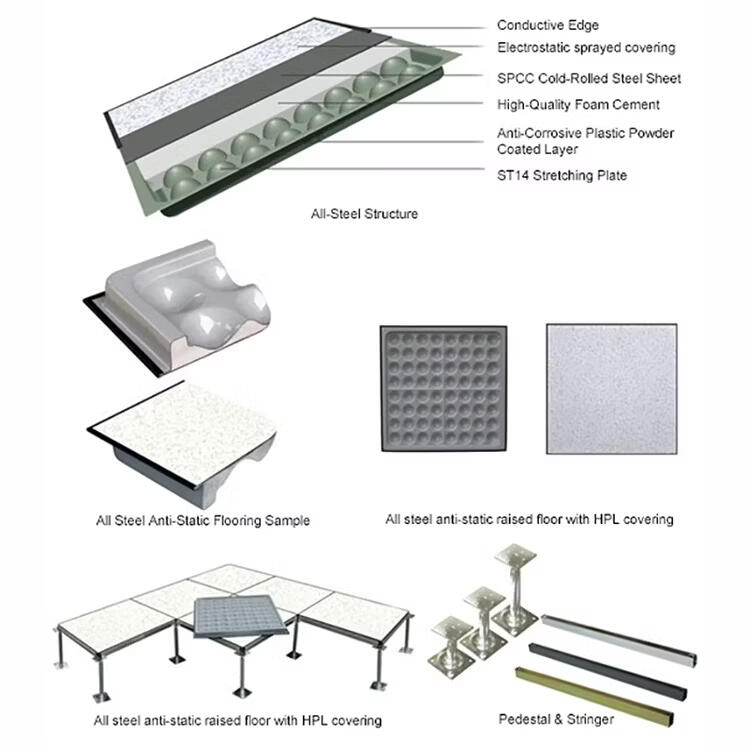

Panel is made of high quality deep stretch coil steel sheet and SPCC steel sheet, which is punched, spot-welded, coated with epoxy powder after has been phosphorated. The panel is filled with foamed cement inside. After being kept for a period of time, it forms a stable support structure. The top steel sheet is stuck with anti-wear and antistatic HPL and the panel is installed with stringer and pedestal
Application
- Data Center
- Command Center
- Control Room
- Server Room
- Laboratory
- Studio
- Panel Room
- Etc
| Type | International | Size mm | Fire Performance | Impact load N | Ultimated Load N | Uniform Load N/M2 |
|---|---|---|---|---|---|---|
| SA-1001 | FS700 | 600x600x35 | A | >445 | >8850 | >12500 |
| SA-1002 | FS800 | 600x600x35 | A | >536 | >11250 | >16100 |
| SA-1003 | FS1000 | 600x600x35 | A | >670 | >13350 | >23000 |
| SA-1004 | FS1250 | 600x600x35 | A | >725 | >16680 | >33000 |
| SA-1005 | FS1500 | 600x600x35 | A | >780 | >26690 | >43000 |
| SA-1006 | FS2000 | 600x600x35 | A | >890 | >31130 | >58000 |
Concentrated Load & Rolling Road N
| LB | N | KG | . | 10 times | 10000 times |
|---|---|---|---|---|---|
| >700 | >2950 | >301 | . | 2950 | 2356 |
| >800 | >3550 | >363 | . | 3560 | 2670 |
| >1000 | >4450 | >453 | . | 4450 | 3560 |
| >1250 | >5560 | >567 | . | 5560 | 4450 |
| >1500 | >6660 | >680 | . | 6670 | 5560 |
| >2000 | >8890 | >906 | . | 8890 | 7800 |
Certification and Standaritation
Steel Panel Cementititous Infill OA/Bare (600 x 600 x 35 mm)
OA panel is made with High quality cold rolled steel, after pan formed and joined together by resistance welding, protected against antistatic epoxy coating, then with light cement in filled.
Application
- Office
- Command Center
- Stage
- Auditorium
- Studio
- Classroom
- Etc
Cross Pedestal
Flat Pedestal
| Type | International | Size mm | Fire Performance | Impact load N | Ultimated Load N | Uniform Load N/M2 |
|---|---|---|---|---|---|---|
| SA-2001 | FS700 | 600x600x35 | A | >445 | >8850 | >12500 |
| SA-2002 | FS800 | 600x600x35 | A | >536 | >11250 | >16100 |
| SA-2003 | FS1000 | 600x600x35 | A | >670 | >13350 | >23000 |
| SA-2004 | FS1250 | 600x600x35 | A | >725 | >16680 | >33000 |
| SA-2006 | FS2000 | 600x600x35 | A | >890 | >31130 | >58000 |
Concentrated Load & Rolling Road N
| LB | N | KG | . | 10 times | 10000 times |
|---|---|---|---|---|---|
| >700 | >2950 | >301 | . | 2950 | 2356 |
| >800 | >3550 | >363 | . | 3560 | 2670 |
| >1000 | >4450 | >453 | . | 4450 | 3560 |
| >1250 | >5560 | >567 | . | 5560 | 4450 |
| >2000 | >8890 | >906 | . | 8890 | 7800 |
Certification and Standaritation

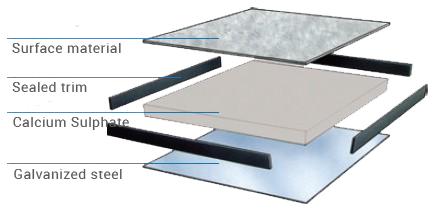

Calcium Sulphate Laminated Anti Static (600 x 600 x 35 mm)
Floor panel is encapsuled to provide full steel encasment, steel to be high quality galvanized steel sheet as top and bottom, High density calcium sulphate as the core.
Application
Antistatic Calcium Sulphate raised floor is widely used in Telecommunication room, Power station, Computer room, Factory clean room, and other antistatic requiring places
| Type | International | Size mm | Fire Performance | Impact load N | Ultimated Load N | Uniform Load N/M2 |
|---|---|---|---|---|---|---|
| SA-3001 | FS800 | 600x600x35 | A | >536 | >11250 | >16100 |
| SA-3002 | FS1000 | 600x600x35 | A | >670 | >13350 | >23000 |
| SA-3003 | FS1250 | 600x600x35 | A | >725 | >16680 | >33000 |
Concentrated Load & Rolling Road N
| LB | N | KG | . | 10 times | 10000 times |
|---|---|---|---|---|---|
| >800 | >3550 | >363 | . | 3560 | 2670 |
| >1000 | >4450 | >453 | . | 4450 | 3560 |
| >1250 | >5560 | >567 | . | 5560 | 4450 |
Certification and Standaritation
Perforated / Air Flow Panel
The frame of ventilation floor is similiar with antistatic raised floor, but it has punched ventilation hole without stuff. Flow panel match use with raised floor, for place that need ventilation and the ventilation rate of panel from 15% - 45%
Perforated 15% ventilation
Perforated 35% ventilation
Perforated 45% ventilation
Damper
Temperature Control VAV
Application
Perforated raised floor mostly used in Server room, Power station, Computer room, and other air flow requiring places
Certification and Standaritation
Spare Part
Spare part description

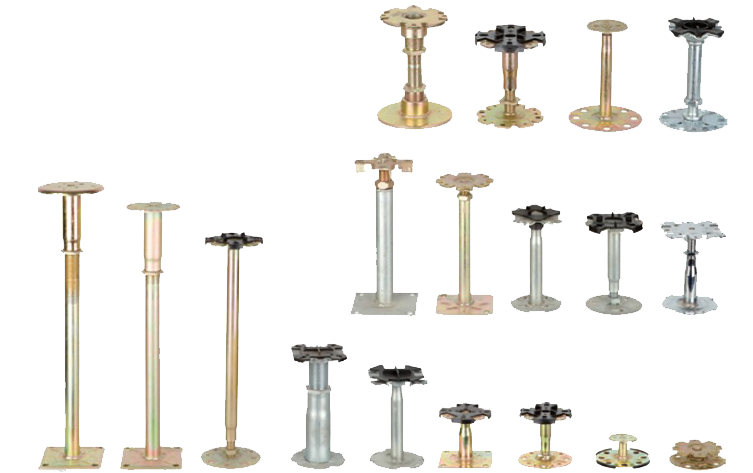

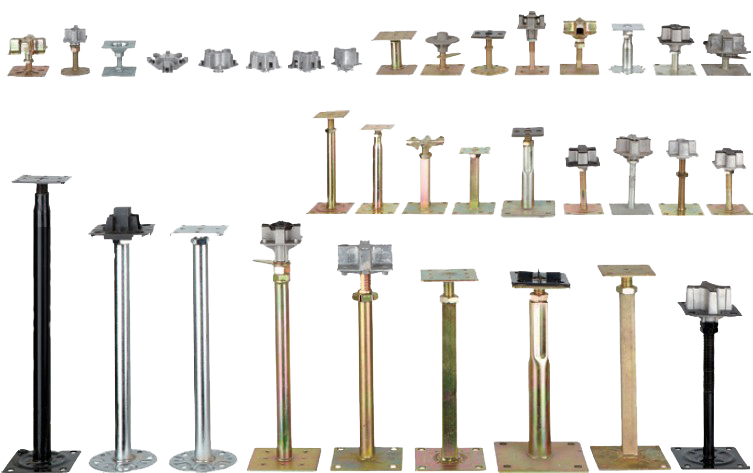

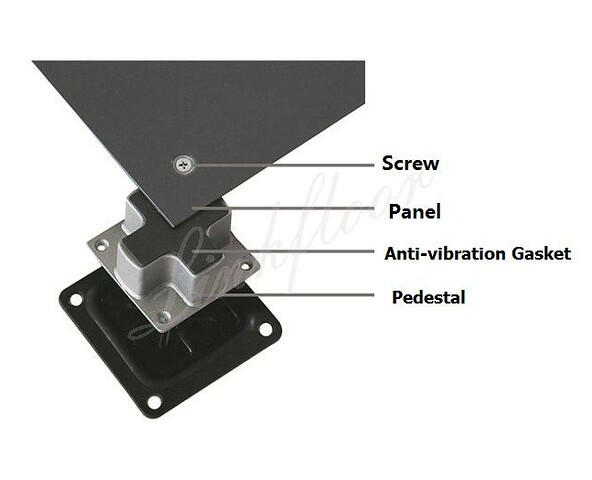

Pedestal
Pedestal for Raised floor Steel concrete
The frame of ventilation floor is similiar with antistatic raised floor, but it has punched ventilation hole without stuff. Flow panel match use with raised floor, for place that need ventilation and the ventilation rate of panel from 15% - 45%

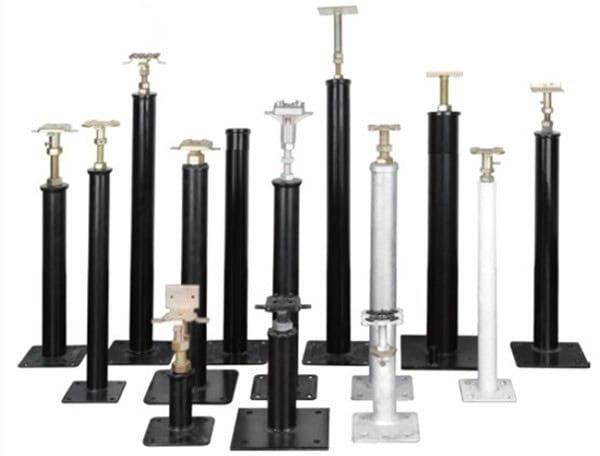

Pedestal for Heavy Duty
The frame of ventilation floor is similiar with antistatic raised floor, but it has punched ventilation hole without stuff. Flow panel match use with raised floor, for place that need ventilation and the ventilation rate of panel from 15% - 45%
Pedestal for Calcium Sulphate and Wooden
The frame of ventilation floor is similiar with antistatic raised floor, but it has punched ventilation hole without stuff. Flow panel match use with raised floor, for place that need ventilation and the ventilation rate of panel from 15% - 45%

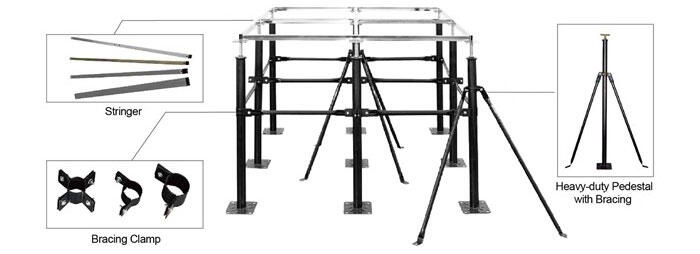

Pedestal Seismic System
The frame of ventilation floor is similiar with antistatic raised floor, but it has punched ventilation hole without stuff. Flow panel match use with raised floor, for place that need ventilation and the ventilation rate of panel from 15% - 45%

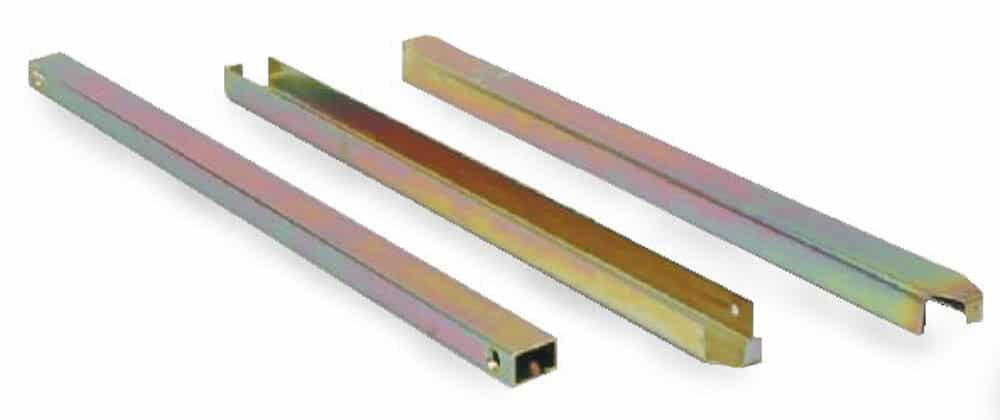

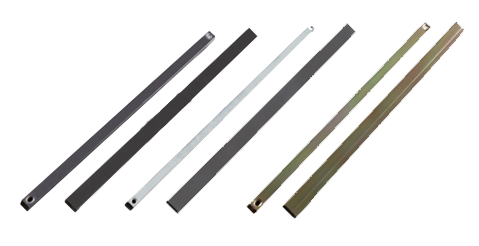

Stringer
Stringer for Raised Floor
The frame of ventilation floor is similiar with antistatic raised floor, but it has punched ventilation hole without stuff. Flow panel match use with raised floor, for place that need ventilation and the ventilation rate of panel from 15% - 45%

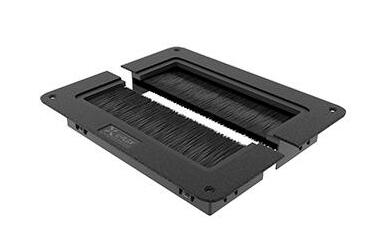

Brush Grommet
Brush Grommet for Raised Floor
The frame of ventilation floor is similiar with antistatic raised floor, but it has punched ventilation hole without stuff. Flow panel match use with raised floor, for place that need ventilation and the ventilation rate of panel from 15% - 45%

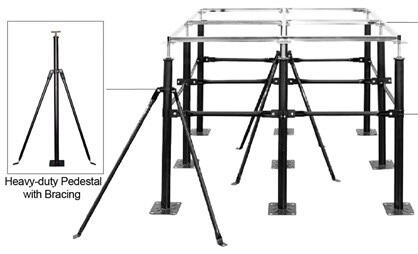

Bracing Kit
Bracing for Raised Floor
The frame of ventilation floor is similiar with antistatic raised floor, but it has punched ventilation hole without stuff. Flow panel match use with raised floor, for place that need ventilation and the ventilation rate of panel from 15% - 45%
